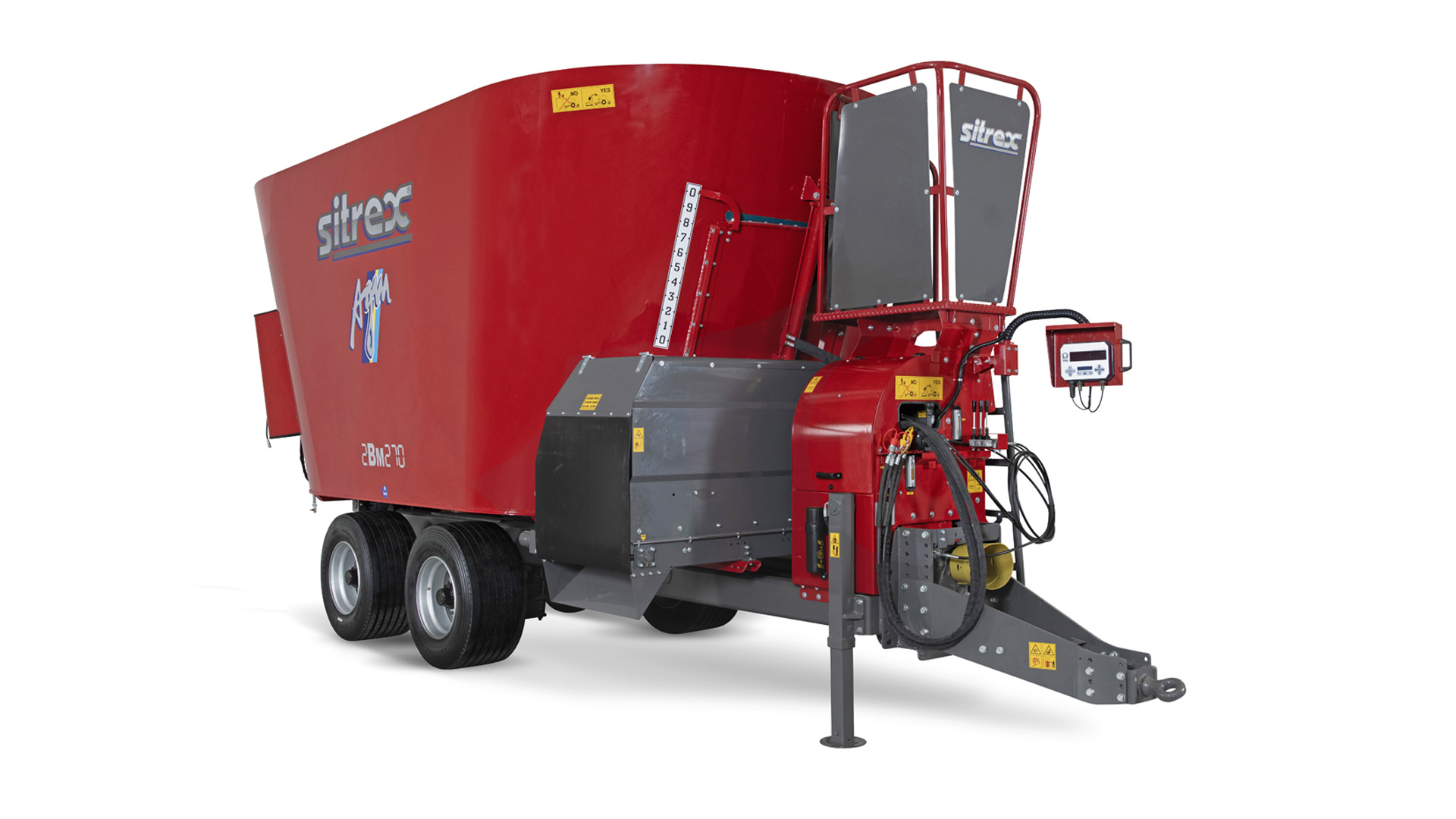

MIXER 2BM

Body inspection ladder
Easy to inspect hood for the various accessories
Front cardan with safety bolt
drawbar with adjustable height and positions
Two-speed gearbox at 540 rpm with cable control in the tractor cab
Frame independent of the body sized for heavy loads in structural steel with no.4 weight sensors Ø70mm
Body base th20mm
Body plates th8mm
Low power absorption augers with two-position adjustable sabre knives and planetary bearing gearboxes
2BM 270-300 – Hydraulic counter-knives L=900mm 2BM 170-240 – Manual counter-knives L=450mm
Double suspension Boogie axle with rocker arm and axle leaf springs, with no.8 fixed front and self-steering rear columns with locking cylinders for reverse gear
Oversized single wheels 435/50 R19.5
Two-sided unloading belt with chain and stainless steel base for longer duration
Clearly visible door opening indicator
Manual support foot
Basic hydraulic system with quick couplings to the tractor
Weight indicator with no.20 recipes and no.20 components with adjustable support
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

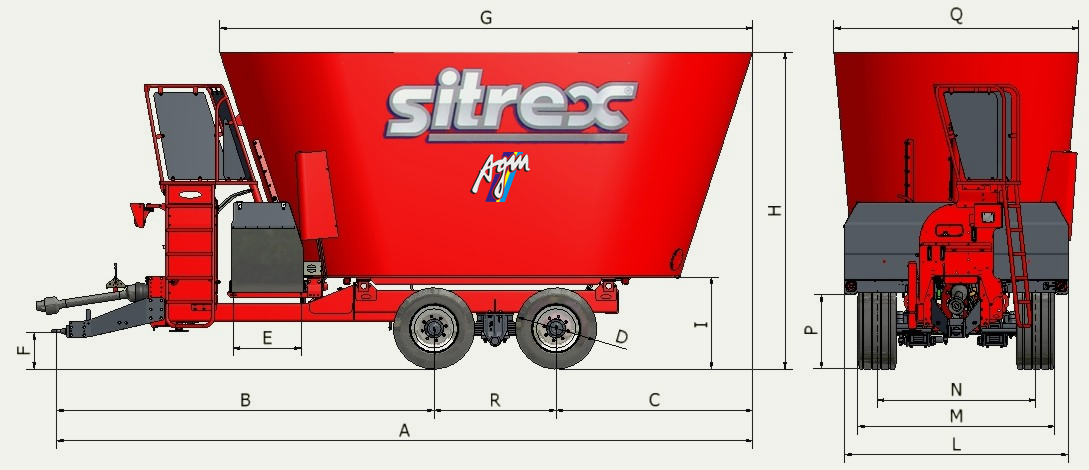

Technical specifications

Specifications2BM - 1702BM - 2002BM - 2202BM - 2402BM - 2702BM - 300
Max Load Kg60007000770084001080012000
Capacity m³172022242730
Power required HP/Kw95 / 70110 / 80120 / 88130 / 95140 / 103150 / 110
A766077357755781078807950
B431543154315431543154315
C195520302050210021752250
D930930930930930930
E780780780780780780
F440440440440440440
G550056505700579559456090
H272529553025318034103620
I105010501050105010501050
L255025502550255025502550
M225022502250225022502250
N180018001800180018001800
P860860860860860860
Q255025502800280028002800
R139013901390139013901390
Tyres435-50 R19,5435-50 R19,5435-50 R19,5435-50 R19,5435-50 R19,5435-50 R19,5
Weight Kg8500880092009500980010200

Technical specifications

Specifications2BM - 170
Max Load Kg6000
Capacity m³17
Power required HP/Kw95 / 70
A7660
B4315
C1955
D930
E780
F440
G5500
H2725
I1050
L2550
M2250
N1800
P860
Q2550
R1390
Tyres435-50 R19,5
Weight Kg8500
Specifications2BM - 200
Max Load Kg7000
Capacity m³20
Power required HP/Kw110 / 80
A7735
B4315
C2030
D930
E780
F440
G5650
H2955
I1050
L2550
M2250
N1800
P860
Q2550
R1390
Tyres435-50 R19,5
Weight Kg8800
Specifications2BM - 220
Max Load Kg7700
Capacity m³22
Power required HP/Kw120 / 88
A7755
B4315
C2050
D930
E780
F440
G5700
H3025
I1050
L2550
M2250
N1800
P860
Q2800
R1390
Tyres435-50 R19,5
Weight Kg9200
Specifications2BM - 240
Max Load Kg8400
Capacity m³24
Power required HP/Kw130 / 95
A7810
B4315
C2100
D930
E780
F440
G5795
H3180
I1050
L2550
M2250
N1800
P860
Q2800
R1390
Tyres435-50 R19,5
Weight Kg9500
Specifications2BM - 270
Max Load Kg10800
Capacity m³27
Power required HP/Kw140 / 103
A7880
B4315
C2175
D930
E780
F440
G5945
H3410
I1050
L2550
M2250
N1800
P860
Q2800
R1390
Tyres435-50 R19,5
Weight Kg9800
Specifications2BM - 300
Max Load Kg12000
Capacity m³30
Power required HP/Kw150 / 110
A7950
B4315
C2250
D930
E780
F440
G6090
H3620
I1050
L2550
M2250
N1800
P860
Q2800
R1390
Tyres435-50 R19,5
Weight Kg10200
