MIXER 2EM

Removable band for 2EM 200
Weight indicator with no.20 recipes and no.20 components with adjustable support
Front cardan with safety bolt
No.3 weight sensors Ø63 one on the drawbar and two on the axle for precision weighing
Body base th15mm
Manual counter knives L=450mm
Axle with no.8 columns
Twin wheels for greater capacity and for reduced machine height
Side right and left unloading ports with adjustable slide
Clearly visible door opening indicator
Manual support foot
Basic hydraulic system with quick couplings to the tractor
Drawbar with adjustable height and positions
Easy to inspect hood for the various accessories
Body inspection ladder
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

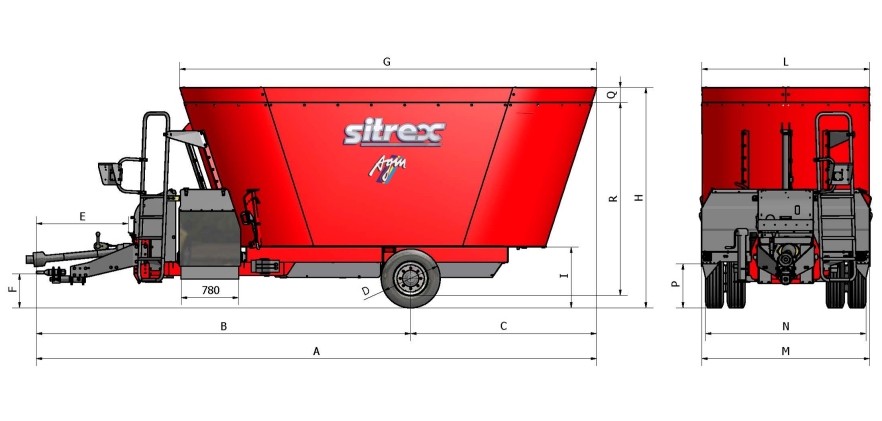

Technical specifications

Specifications2EM - 1202EM - 1402EM - 1602EM - 1802EM - 200
Max Load Kg36004200480054006000
Capacity m³1214161820
Power required HP/Kw75 / 5580 / 5990 / 66100 / 73110 / 80
A68006860691069707030
B45254525452545254525
C22752335238524452505
D770770770770770
E11001100110011001100
F420420420420420
G51305270537054905620
H23002420257027602960
I800800800800800
L22502250225022502250
M21502150215021502150
N16001600160016001600
P330330330330330
Q////200
R21202220237025402540
Tyres15.0/55 R17235/75 R17,5235/75 R17,5235/75 R17,5235/75 R17,5
Weight Kg52005800600062006480

Technical specifications

Specifications2EM - 1202EM - 1402EM - 1602EM - 1802EM - 200
Max Load Kg36004200480054006000
Capacity m³1214161820
Power required HP/Kw75 / 5580 / 5990 / 66100 / 73110 / 80
A73207370742074707530
B50305030503050305030
C22902340239024402500
D730790790790790
E11001100110011001100
F420420420420420
G51305270537054905620
H22502440259027702970
I820820820820820
L22502250225022502250
M21502150215021502150
N16001600160016001600
P600600600600600
Q////200
R21202220237025402540
Tyres205/65 R17,5235/75 R17,5235/75 R17,5235/75 R17,5235/75 R17,5
Weight Kg52005800590061006200

Technical specifications

Specifications2EM - 120
Max Load Kg3600
Capacity m³12
Power required HP/Kw75 / 55
A6800
B4525
C2275
D770
E1100
F420
G5130
H2300
I800
L2250
M2150
N1600
P330
Q/
R2120
Tyres15.0/55 R17
Weight Kg5200
Specifications2EM - 140
Max Load Kg4200
Capacity m³14
Power required HP/Kw80 / 59
A6860
B4525
C2335
D770
E1100
F420
G5270
H2420
I800
L2250
M2150
N1600
P330
Q/
R2220
Tyres235/75 R17,5
Weight Kg5800
Specifications2EM - 160
Max Load Kg4800
Capacity m³16
Power required HP/Kw90 / 66
A6910
B4525
C2385
D770
E1100
F420
G5370
H2570
I800
L2250
M2150
N1600
P330
Q/
R2370
Tyres235/75 R17,5
Weight Kg6000
Specifications2EM - 180
Max Load Kg5400
Capacity m³18
Power required HP/Kw100 / 73
A6970
B4525
C2445
D770
E1100
F420
G5490
H2760
I800
L2250
M2150
N1600
P330
Q/
R2540
Tyres235/75 R17,5
Weight Kg6200
Specifications2EM - 200
Max Load Kg6000
Capacity m³20
Power required HP/Kw110 / 80
A7030
B4525
C2505
D770
E1100
F420
G5620
H2960
I800
L2250
M2150
N1600
P330
Q200
R2540
Tyres235/75 R17,5
Weight Kg6480

Technical specifications

Specifications2EM - 120
Max Load Kg3600
Capacity m³12
Power required HP/Kw75 / 55
A7320
B5030
C2290
D730
E1100
F420
G5130
H2250
I820
L2250
M2150
N1600
P600
Q/
R2120
Tyres205/65 R17,5
Weight Kg5200
Specifications2EM - 140
Max Load Kg4200
Capacity m³14
Power required HP/Kw80 / 59
A7370
B5030
C2340
D790
E1100
F420
G5270
H2440
I820
L2250
M2150
N1600
P600
Q/
R2220
Tyres235/75 R17,5
Weight Kg5800
Specifications2EM - 160
Max Load Kg4800
Capacity m³16
Power required HP/Kw90 / 66
A7420
B5030
C2390
D790
E1100
F420
G5370
H2590
I820
L2250
M2150
N1600
P600
Q/
R2370
Tyres235/75 R17,5
Weight Kg5900
Specifications2EM - 180
Max Load Kg5400
Capacity m³18
Power required HP/Kw100 / 73
A7470
B5030
C2440
D790
E1100
F420
G5490
H2770
I820
L2250
M2150
N1600
P600
Q/
R2540
Tyres235/75 R17,5
Weight Kg6100
Specifications2EM - 200
Max Load Kg6000
Capacity m³20
Power required HP/Kw110 / 80
A7530
B5030
C2500
D790
E1100
F420
G5620
H2970
I820
L2250
M2150
N1600
P600
Q200
R2540
Tyres235/75 R17,5
Weight Kg6200

Standard Equipment
