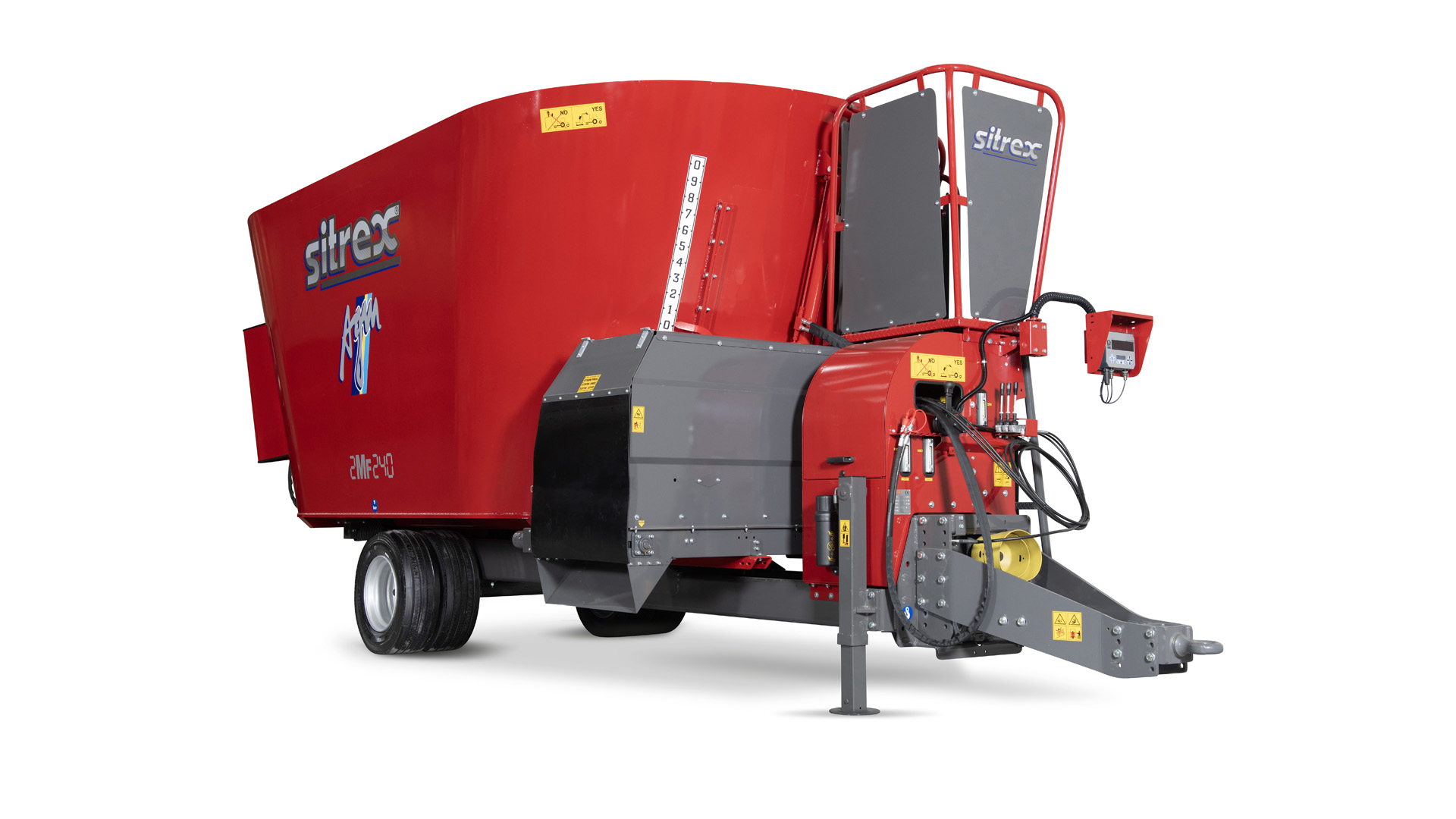

MIXER 2MF

Body inspection ladder
Easy to inspect hood for the various accessories
Front cardan with safety bolt
Drawbar with adjustable height and positions
Two-speed gearbox at 540 rpm with cable control in the tractor cab
Frame independent of the body sized for heavy loads in strctural steel with no.4 weight sensors Ø70mm
Body base th20mm
Body plates th8mm
Low power absorption augers with two-position adjustable sabre knives and planetary bearing gearboxes
Manual counter knives L=450mm
Axle with no.8 columns
Twin wheels for greater capacity and for reduced machine height
Two-sized unloading belt with chain and stainless steel base for longer duration
Clearly visible door opening indicator
Manual support foot
Basic hydraulic system with quick couplings to the tractor
Weight indicator with no.20 recipes and no.20 components with adjustable support
Removable band for 2MF 200-220-240
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

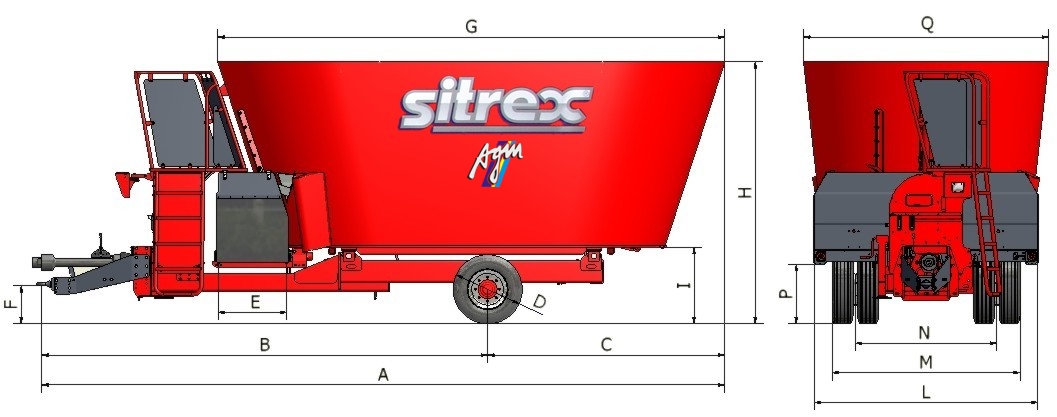

Technical specifications

Specifications2MF - 1402MF - 1702MF - 2002MF - 2202MF - 240
Max Load Kg49006000700077008400
Capacity m³1417202224
Power required HP/Kw80 / 5995 / 70110 / 80120 / 88130 / 95
A75207600770077307840
B50905090509050905090
C24302510261026402750
D795795795795795
E780780780780780
F440440440440440
G53205500564057405830
H24702780302031903310
I845875875875875
L22502250225022502250
M21702170217021702170
N16001600160016001600
P650680680680680
Q//240420540
R/2540254025402540
Tyres235/75 R17.5235/75 R17.5235/75 R17.5235/75 R17.5235/75 R17.5
Weight Kg67007640781081008300

Technical specifications

Specifications2MF - 140
Max Load Kg4900
Capacity m³14
Power required HP/Kw80 / 59
A7520
B5090
C2430
D795
E780
F440
G5320
H2470
I845
L2250
M2170
N1600
P650
Q/
R/
Tyres235/75 R17.5
Weight Kg6700
Specifications2MF - 170
Max Load Kg6000
Capacity m³17
Power required HP/Kw95 / 70
A7600
B5090
C2510
D795
E780
F440
G5500
H2780
I875
L2250
M2170
N1600
P680
Q/
R2540
Tyres235/75 R17.5
Weight Kg7640
Specifications2MF - 200
Max Load Kg7000
Capacity m³20
Power required HP/Kw110 / 80
A7700
B5090
C2610
D795
E780
F440
G5640
H3020
I875
L2250
M2170
N1600
P680
Q240
R2540
Tyres235/75 R17.5
Weight Kg7810
Specifications2MF - 220
Max Load Kg7700
Capacity m³22
Power required HP/Kw120 / 88
A7730
B5090
C2640
D795
E780
F440
G5740
H3190
I875
L2250
M2170
N1600
P680
Q420
R2540
Tyres235/75 R17.5
Weight Kg8100
Specifications2MF - 240
Max Load Kg8400
Capacity m³24
Power required HP/Kw130 / 95
A7840
B5090
C2750
D795
E780
F440
G5830
H3310
I875
L2250
M2170
N1600
P680
Q540
R2540
Tyres235/75 R17.5
Weight Kg8300

Standard Equipment
