MIXER 3BM

Hood interior
Machine controls and weighing control unit
Drawbar
Change
Frame
Belt
Reducers
Leaf suspension
Self-steering axles
Fixed axle
Weight sensors
Reducer oil tank
Counter-knives

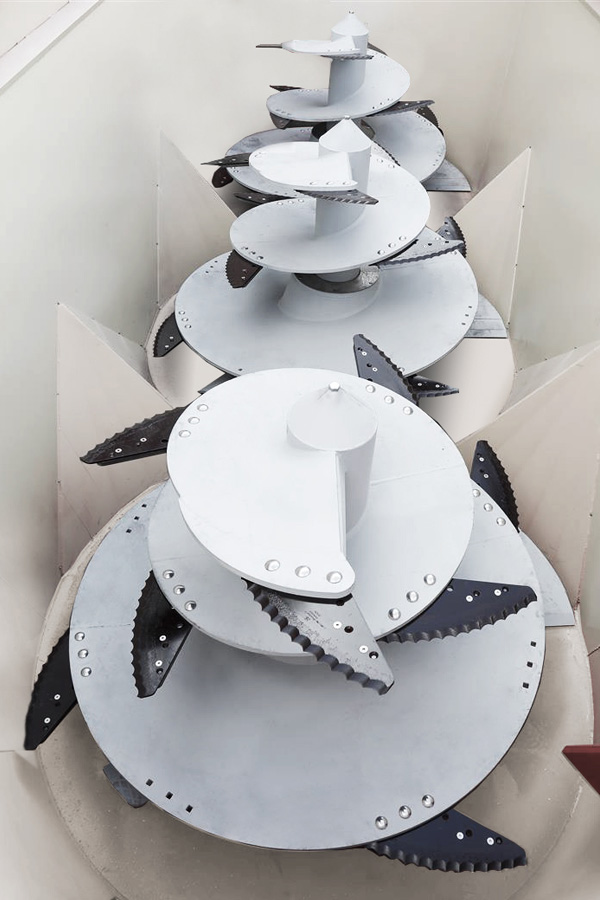

Auger and knives
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

Technical specifications

Specifications3BM - 3503BM - 4003BM - 4503BM - 500
Max Load Kg14000160001800020000
Capacity m³35404550
Power required HP/Kw180 / 132200 / 147225 / 165250 / 184
A10250102501040010400
B5250525052505250
B16610661066106610
C2280228024302430
D930930930930
E920920920920
F400/500400/500400/500400/500
G7870804081608350
H3190344036903940
I1100110011001100
L2550255025502550
M2400240024002400
N2000200020002000
P880880880880
Q2800280028002800
R1360136013601360
Tyres435-50 R19,5
455/40 R22,5
435-50 R19,5
455/40 R22,5
435-50 R19,5
455/40 R22,5
435-50 R19,5
455/40 R22,5
Weight Kg15200156001600016500

Technical specifications

Specifications3BM - 350
Max Load Kg14000
Capacity m³35
Power required HP/Kw180 / 132
A10250
B5250
B16610
C2280
D930
E920
F400/500
G7870
H3190
I1100
L2550
M2400
N2000
P880
Q2800
R1360
Tyres435-50 R19,5
455/40 R22,5
Weight Kg15200
Specifications3BM - 400
Max Load Kg16000
Capacity m³40
Power required HP/Kw200 / 147
A10250
B5250
B16610
C2280
D930
E920
F400/500
G8040
H3440
I1100
L2550
M2400
N2000
P880
Q2800
R1360
Tyres435-50 R19,5
455/40 R22,5
Weight Kg15600
Specifications3BM - 450
Max Load Kg18000
Capacity m³45
Power required HP/Kw225 / 165
A10400
B5250
B16610
C2430
D930
E920
F400/500
G8160
H3690
I1100
L2550
M2400
N2000
P880
Q2800
R1360
Tyres435-50 R19,5
455/40 R22,5
Weight Kg16000
Specifications3BM - 500
Max Load Kg20000
Capacity m³50
Power required HP/Kw250 / 184
A10400
B5250
B16610
C2430
D930
E920
F400/500
G8350
H3940
I1100
L2550
M2400
N2000
P880
Q2800
R1360
Tyres435-50 R19,5
455/40 R22,5
Weight Kg16500

Standard equipment
