MIXER EM SMART

Axle with no.6 columns
Single and lowered wheels for a low machine height
Side or right or left unloading port with adjustable slide
Manual counter knives L=370mm
Structured òpad-bearing frame on the body for greater strength
Drawbar with adjustable height and positions
Basic hydraulic system with quick couplings to the tractor
Simple weight indicator for partial and total weighings with adjustable support
Manual support foot
Body inspection ladder
Body base th12mm
body plates th5mm
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

Technical specifications

SpecificationsEM - 30EM - 40EM - 50EM - 60
Max Load Kg900120015001800
Capacity m³3456
Power required HP/Kw35 / 2635 / 2641 / 3041 / 30

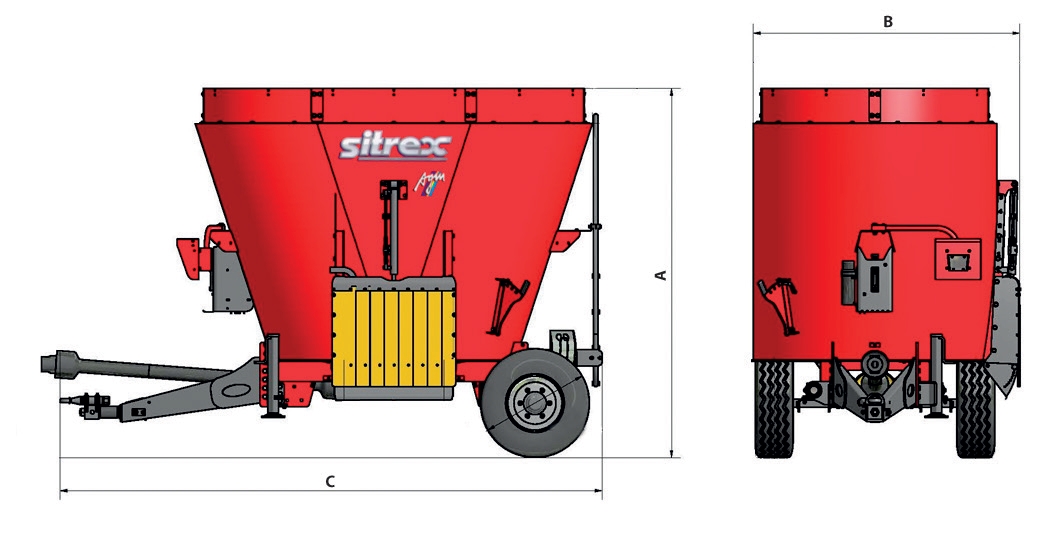

A3700370038503850
B700700700700
C500500500500
D760760760760
E10001000900900
F390390390390
G2515251528002800
H1960218023602580
I670670670670
L1700170017001700
L11860186018601860
M1670167016701670
N1400140014001400
P400400400400
Q/245/245
R1760176021602160
Tyres10.0/75 R1510.0/75 R1510.0/75 R1510.0/75 R15
Weight Kg1600170018001900

Technical specifications

SpecificationsEM - 30
Max Load Kg900
Capacity m³3
Power required HP/Kw35 / 26
A3700
B700
C500
D760
E1000
F390
G2515
H1960
I670
L1700
L11860
M1670
N1400
P400
Q/
R1760
Tyres10.0/75 R15
Weight Kg1600
SpecificationsEM - 40
Max Load Kg1200
Capacity m³4
Power required HP/Kw35 / 26
A3700
B700
C500
D760
E1000
F390
G2515
H2180
I670
L1700
L11860
M1670
N1400
P400
Q245
R1760
Tyres10.0/75 R15
Weight Kg1700
SpecificationsEM - 50
Max Load Kg1500
Capacity m³5
Power required HP/Kw41 / 30
A3850
B700
C500
D760
E900
F390
G2800
H2360
I670
L1700
L11860
M1670
N1400
P400
Q/
R2160
Tyres10.0/75 R15
Weight Kg1800
SpecificationsEM - 60
Max Load Kg1800
Capacity m³6
Power required HP/Kw41 / 30
A3850
B700
C500
D760
E900
F390
G2800
H2580
I670
L1700
L11860
M1670
N1400
P400
Q245
R2160
Tyres10.0/75 R15
Weight Kg1900

Standard Equipment
