MIXER EM

Manual counter knives L=450mm
Axle with no.6 columns
Single and lowered wheels for a low machine height
Side or right or left unloading port with adjustable slide
Manual support foot
Drawbar with adjustable height and positions
Easy to inspect hood for the various accessories
Body inspection ladder
No.3 weight sensors Ø63 one on the drawbar and two on the axle for precision weighing
Weight indicator with no.20 recipes and no.20 components with adjustable support
Body base th15mm
Body plates th6mm

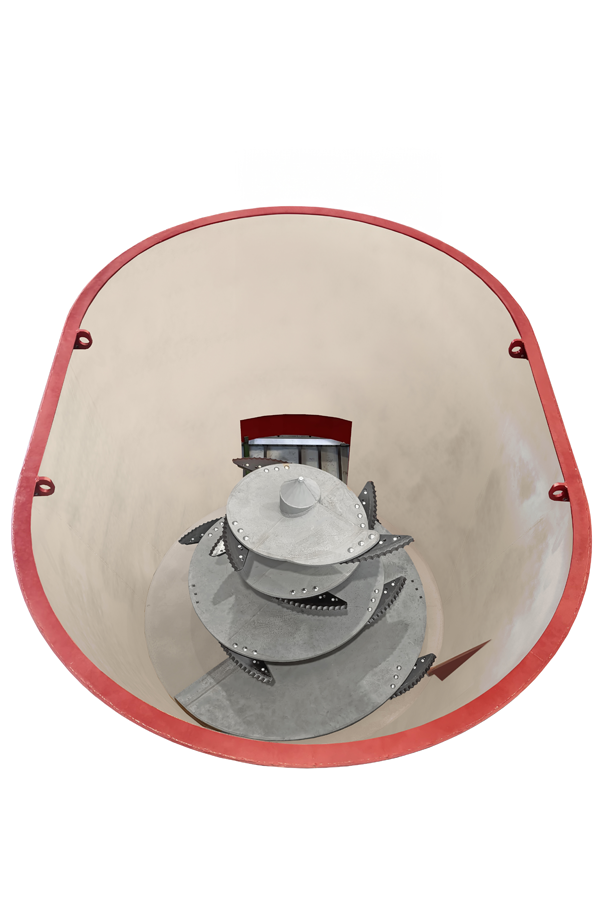

Low power absorption auger with two-position adjustable sabre knives and planetary bearing gearbox
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

Technical specifications

SpecificationsEM - 80EM - 100EM - 120EM - 140EM - 150
Max Load Kg24003000360042004500
Capacity m³810121415
Power required HP/Kw60 / 4470 / 5175 / 5580 / 5985 / 62
A48504960503051505195
B35103510351035103510
C13401450152016251670
D760760760770770
E13101310131013101310
F410410410410410
G32703500368038553940
H24102760305033203450
I785785785800800
L22502250225022502250
M18801880188021502150
N16001600160016001600
P330330330330330
Q//300550680
R22202555255525552555
Tyres10.0/75 R1510.0/75 R1510.0/75 R15215/75 R17,5215/75 R17,5
Weight Kg31003500370041604320

Technical specifications

SpecificationsEM - 100EM - 120EM - 140EM - 150
Max Load Kg3000360042004500
Capacity m³10121415
Power required HP/Kw70 / 5175 / 5580 / 5985 / 62
A5100518052605300
B3630363036303630
C1470155016301670
D770770770770
E1310131013101310
F410410410410
G3575371038703950
H2650280030503170
I800800800800
L2450245024502450
M2150215021502150
N1600160016001600
P330330330330
Q//260380
R2585258525852585
Tyres10.0/75 R1510.0/75 R15215/75 R17,5215/75 R17,5
Weight Kg3500370041604320

Technical specifications

SpecificationsEM - 80
Max Load Kg2400
Capacity m³8
Power required HP/Kw60 / 44
A4850
B3510
C1340
D760
E1310
F410
G3270
H2410
I785
L2250
M1880
N1600
P330
Q/
R2220
Tyres10.0/75 R15
Weight Kg3100
SpecificationsEM - 100
Max Load Kg3000
Capacity m³10
Power required HP/Kw70 / 51
A4960
B3510
C1450
D760
E1310
F410
G3500
H2760
I785
L2250
M1880
N1600
P330
Q/
R2555
Tyres10.0/75 R15
Weight Kg3500
SpecificationsEM - 120
Max Load Kg3600
Capacity m³12
Power required HP/Kw75 / 55
A5030
B3510
C1520
D760
E1310
F410
G3680
H3050
I785
L2250
M1880
N1600
P330
Q300
R2555
Tyres10.0/75 R15
Weight Kg3700
SpecificationsEM - 140
Max Load Kg4200
Capacity m³14
Power required HP/Kw80 / 59
A5150
B3510
C1625
D770
E1310
F410
G3855
H3320
I800
L2250
M2150
N1600
P330
Q550
R2555
Tyres215/75 R17,5
Weight Kg4160
SpecificationsEM - 150
Max Load Kg4500
Capacity m³15
Power required HP/Kw85 / 62
A5195
B3510
C1670
D770
E1310
F410
G3940
H3450
I800
L2250
M2150
N1600
P330
Q680
R2555
Tyres215/75 R17,5
Weight Kg4320

Technical specifications

SpecificationsEM - 100
Max Load Kg3000
Capacity m³10
Power required HP/Kw70 / 51
A5100
B3630
C1470
D770
E1310
F410
G3575
H2650
I800
L2450
M2150
N1600
P330
Q/
R2585
Tyres10.0/75 R15
Weight Kg3500
SpecificationsEM - 120
Max Load Kg3600
Capacity m³12
Power required HP/Kw75 / 55
A5180
B3630
C1550
D770
E1310
F410
G3710
H2800
I800
L2450
M2150
N1600
P330
Q/
R2585
Tyres10.0/75 R15
Weight Kg3700
SpecificationsEM - 140
Max Load Kg4200
Capacity m³14
Power required HP/Kw80 / 59
A5260
B3630
C1630
D770
E1310
F410
G3870
H3050
I800
L2450
M2150
N1600
P330
Q260
R2585
Tyres215/75 R17,5
Weight Kg4160
SpecificationsEM - 150
Max Load Kg4500
Capacity m³15
Power required HP/Kw85 / 62
A5300
B3630
C1670
D770
E1310
F410
G3950
H3170
I800
L2450
M2150
N1600
P330
Q380
R2585
Tyres215/75 R17,5
Weight Kg4320

Technical specifications

SpecificationsEM - 140EM - 150
Max Load Kg42004500
Capacity m³1415
Power required HP/Kw80 / 5985 / 62
A53305370
B36803680
C16501690
D770770
E13101310
F410410
G38953975
H29203050
I800800
L25502550
M21502150
N16001600
P330330
Q//
R27252835
Tyres215/75 R17,5215/75 R17,5
Weight Kg41604320

Standard Equipment
