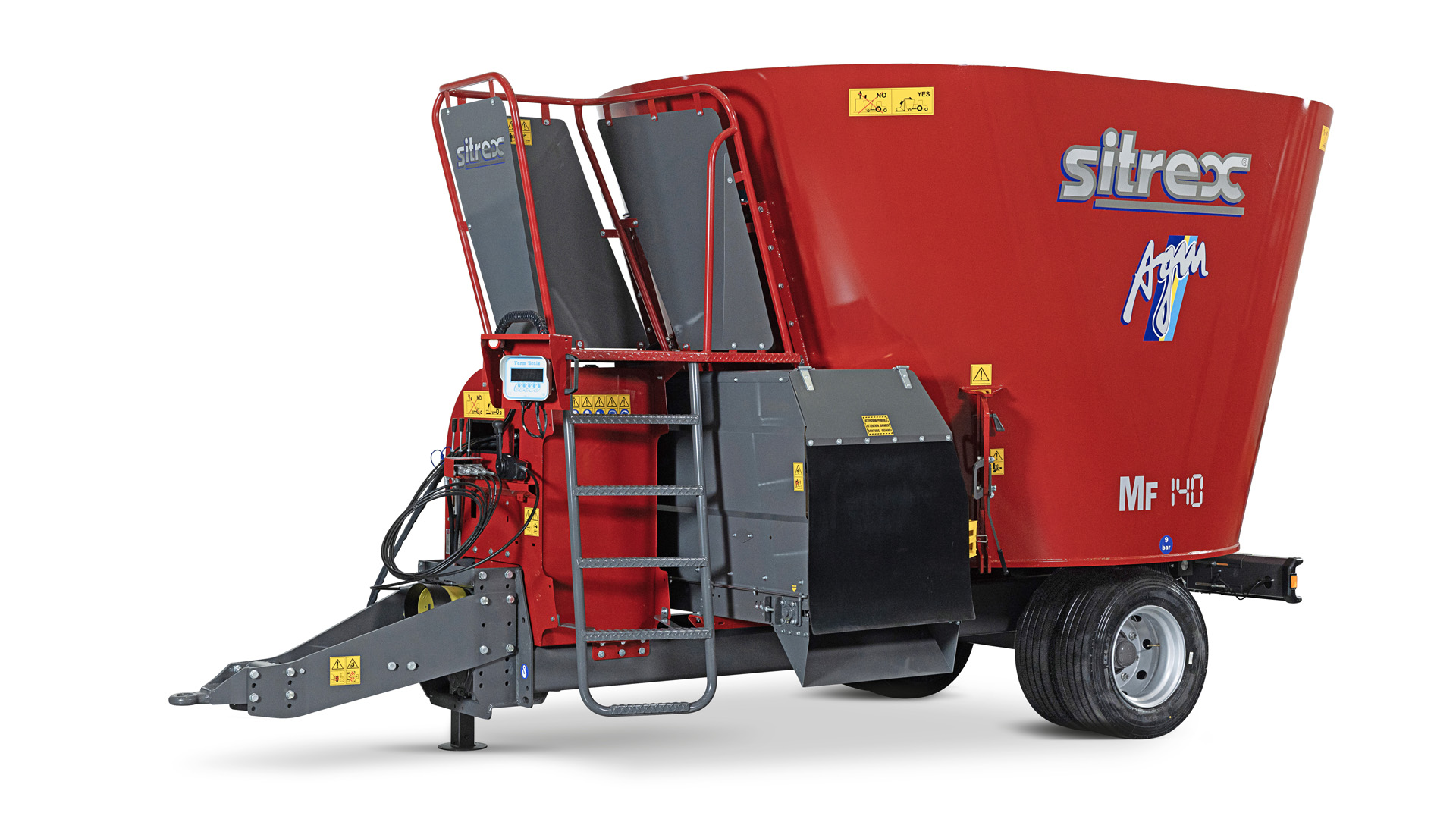

MIXER MF

Body inspection ladder
Easy to inspect hood for the various accessories
Front cardan with safety bolt
Drawbar with adjustable height and positions
Two-speed gearbox at 540 rpm with cable control in the tractor cab
Frame independent of the body sized for heavy loads in structural steel with no.4 weight sensors Ø54mm
Body base th20mm
Body plates th8mm
Low power absorption auger with sabre knives adjustable into two positions and planetary bearing gearbox
Manual counter knives L=450mm
Axle with no.8 columns
Twin wheels for greater capacity and for reduced machine height
Two-sided unloading belt with chain and stainless steel base for longer duration
Clearly visible door opening indicator
Manual support foot
Basic hydraulic system with quick couplings to the tractor
Weight indicator with no.20 recipes and no.20 components with adjustable support
Removable band for MF 120-140-150
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

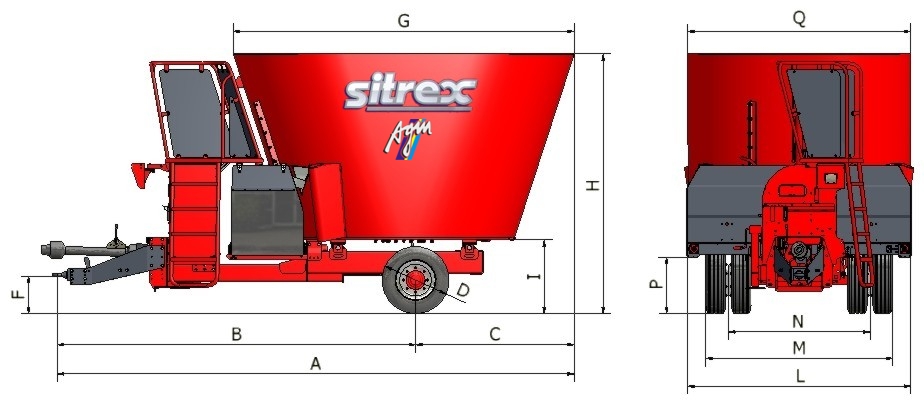

Technical specifications

SpecificationsMF - 80MF - 90MF - 100MF - 120MF - 140MF - 150
Max Load Kg280032003600420049005300
Capacity m³8910121415
Power required HP/Kw60 / 4465 / 4870 / 5175 / 5580 / 5985 / 62
A534053955445553556255665
B397539753975397539753975
C136514201470156016501690
D795795795795795795
E780780780780780780
F430430430430430430
G327033903500368038553940
H244026202780308033503480
I815815815815815815
L225022502250225022502250
M217021702170217021702170
N160016001600160016001600
P650680680680680680
Q///300580710
R/24002550255025502550
Tyres10,0/75 R1510,0/75 R1510,0/75 R15235/75 R17.5235/75 R17.5235/75 R17.5
Weight Kg400041004200450046504800

Technical specifications

SpecificationsMF - 80
Max Load Kg2800
Capacity m³8
Power required HP/Kw60 / 44
A5340
B3975
C1365
D795
E780
F430
G3270
H2440
I815
L2250
M2170
N1600
P650
Q/
R/
Tyres10,0/75 R15
Weight Kg4000
SpecificationsMF - 90
Max Load Kg3200
Capacity m³9
Power required HP/Kw65 / 48
A5395
B3975
C1420
D795
E780
F430
G3390
H2620
I815
L2250
M2170
N1600
P680
Q/
R2400
Tyres10,0/75 R15
Weight Kg4100
SpecificationsMF - 100
Max Load Kg3600
Capacity m³10
Power required HP/Kw70 / 51
A5445
B3975
C1470
D795
E780
F430
G3500
H2780
I815
L2250
M2170
N1600
P680
Q/
R2550
Tyres10,0/75 R15
Weight Kg4200
SpecificationsMF - 120
Max Load Kg4200
Capacity m³12
Power required HP/Kw75 / 55
A5535
B3975
C1560
D795
E780
F430
G3680
H3080
I815
L2250
M2170
N1600
P680
Q300
R2550
Tyres235/75 R17.5
Weight Kg4500
SpecificationsMF - 140
Max Load Kg4900
Capacity m³14
Power required HP/Kw80 / 59
A5625
B3975
C1650
D795
E780
F430
G3855
H3350
I815
L2250
M2170
N1600
P680
Q580
R2550
Tyres235/75 R17.5
Weight Kg4650
SpecificationsMF - 150
Max Load Kg5300
Capacity m³15
Power required HP/Kw85 / 62
A5665
B3975
C1690
D795
E780
F430
G3940
H3480
I815
L2250
M2170
N1600
P680
Q710
R2550
Tyres235/75 R17.5
Weight Kg4800
