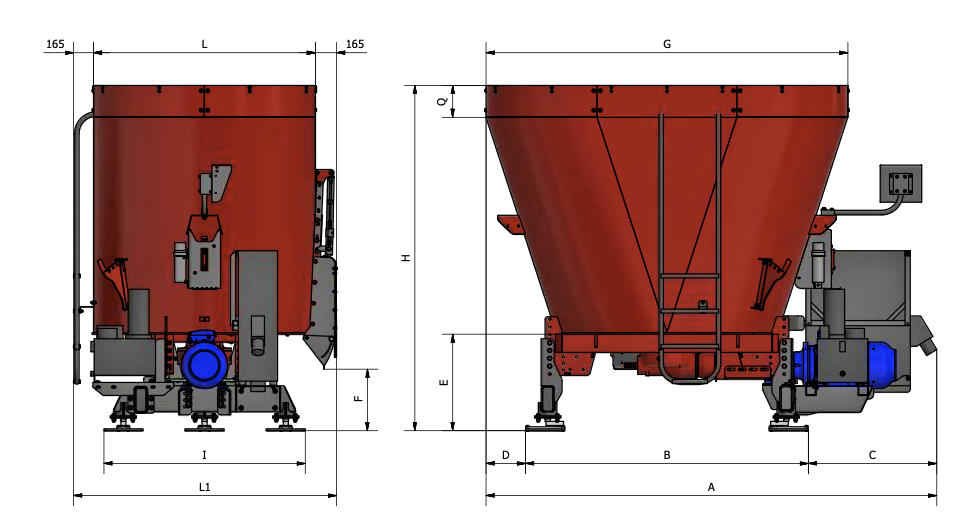

| Specifications | SL – 30 | SL – 40 | SL – 50 | SL – 60 |
|---|---|---|---|---|
| Max Load Kg | 900 | 1200 | 1500 | 1800 |
| Capacity m³ | 3 | 4 | 5 | 6 |
| Elettric motor HP/Kw | 15 | 15 | 22 | 22 |
| A | 3460 | 3460 | 3460 | 3460 |
| B | 2170 | 2170 | 2170 | 2170 |
| C | 985 | 985 | 985 | 985 |
| D | 300 | 300 | 300 | 300 |
| E | 740 | 740 | 740 | 740 |
| F | 390 | 390 | 390 | 390 |
| G | 2515 | 2515 | 2800 | 2800 |
| H | 2030 | 2200 | 2420 | 2650 |
| I | 1550 | 1550 | 1550 | 1550 |
| L | 1700 | 1700 | 1700 | 1700 |
| L1 | 2030 | 2030 | 2030 | 2030 |
| Q | / | 245 | / | 245 |
| Weight Sensors | 3 | 3 | 3 | 3 |
| Weight Kg | 1910 | 1980 | 2220 | 2300 |

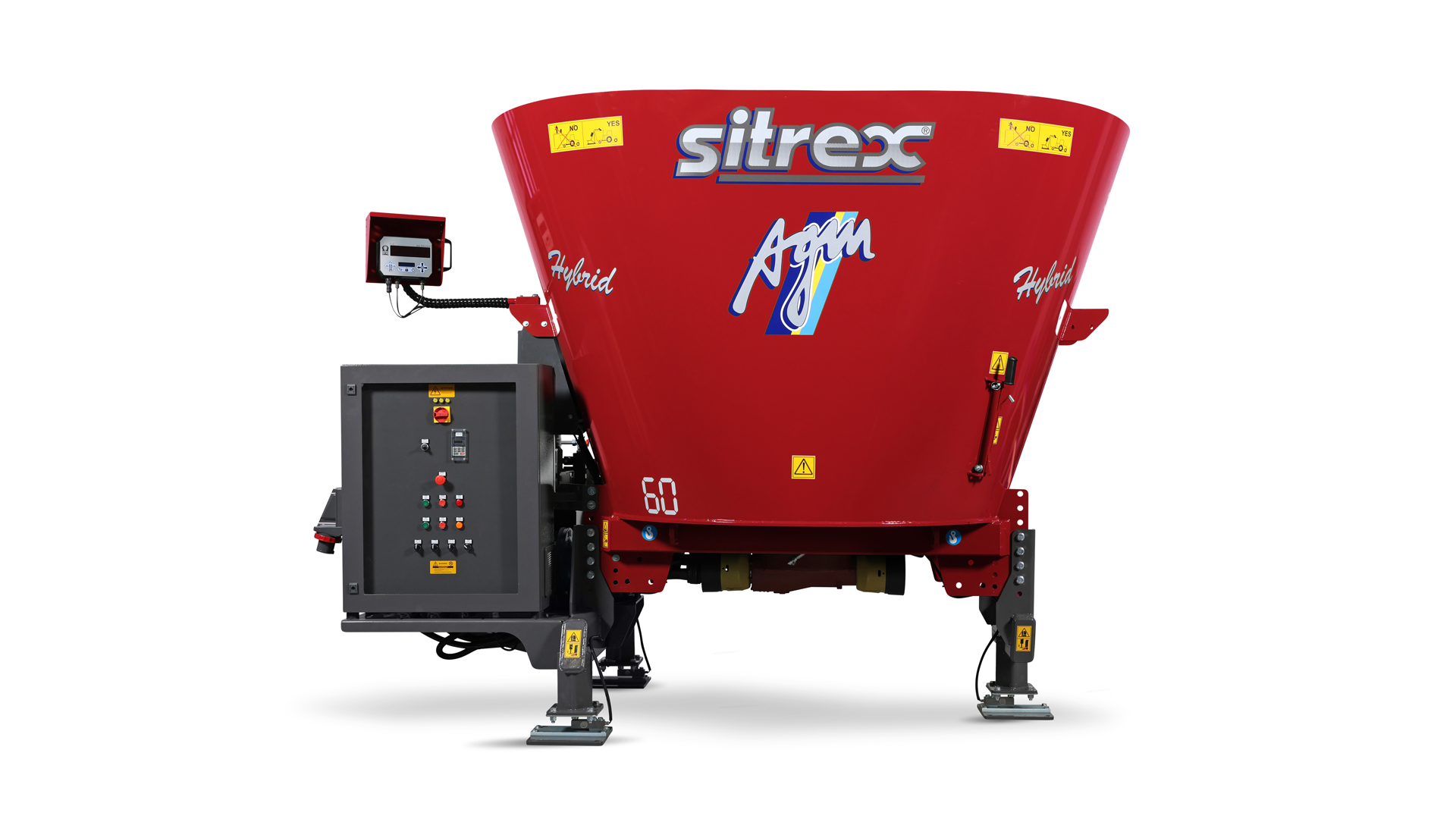

MIXER SL SMART HYBRID
SL–30 / SL–40 / SL–50 / SL–60
Ideal for integration internal supply systems (farms with stationary supply systems or supply centres).
The motors and geared motors are directly connected and protected on one side of the mixing device vat, and they are positioned so as to allow access for any kind of maintenance. Therefore, on the other completely vacant side, you can load the mixer, ruling out the possibility of damaging the electric motors when loading.
Furthermore, the motor and geared motor ratios are set to have minimum stress with maximum performance. In addition, the inverter (optional) allows to perform any kind of mixing, with any speed range required from zero to max 34 revolutions.
Both the independent hydraulic system and the discharge belt with various lengths and inclination, depending on the needs of the farm, may also be provided as optional equipment.
Container sheets th5mm
12mm-thick auger
370 mm counter blades
12mm-think container bottom
Frame
Support columns
Weight sensors
Auger geared motor
Discharge door
Discharge extension (optional)
Weighing control unit
Geared motor (optional)
Hydraulic control unit for services (optional)
Weighing Control Unit
Electric Panel (ptional)

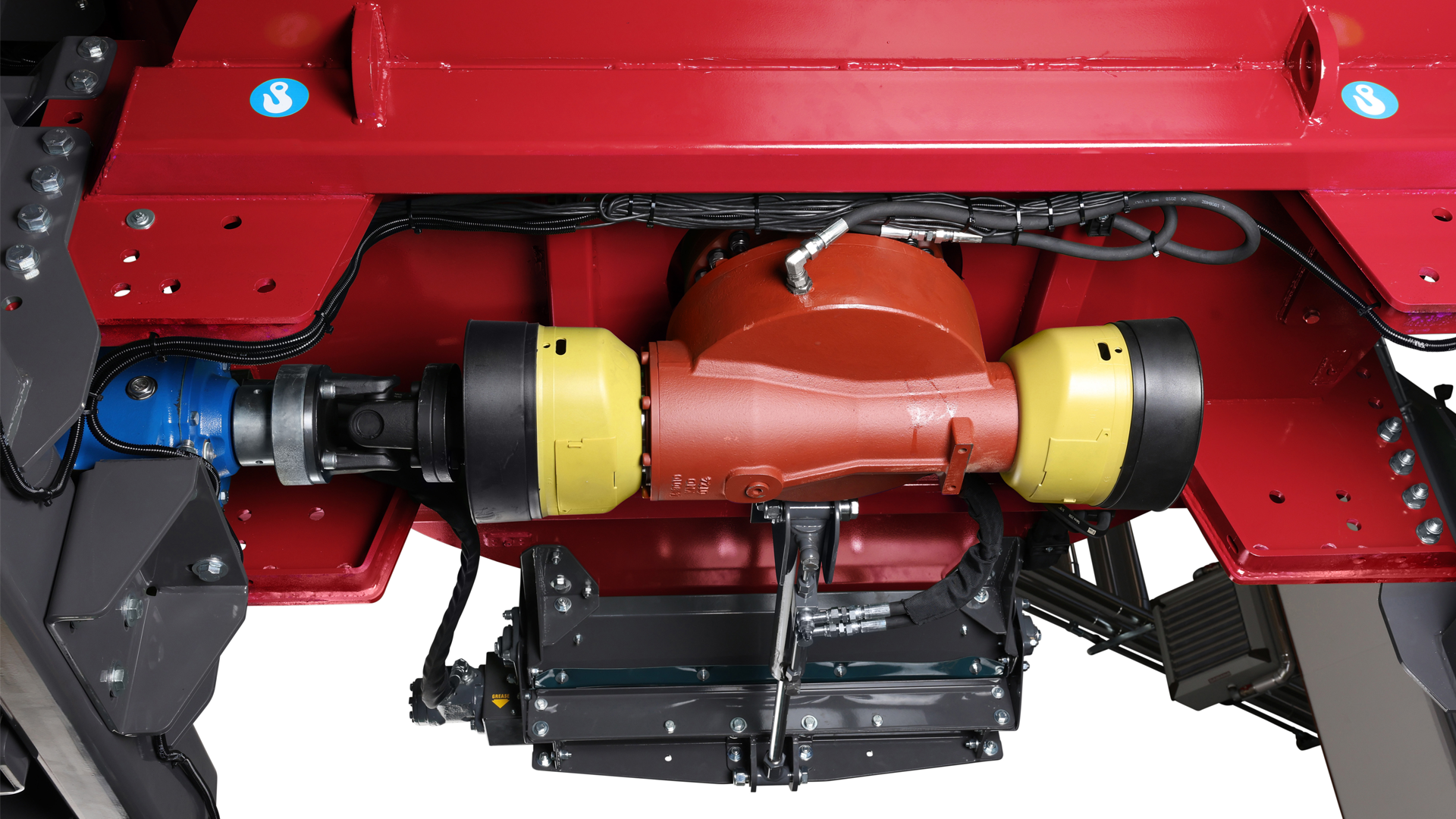

Connection universal joint
Auger geared motor

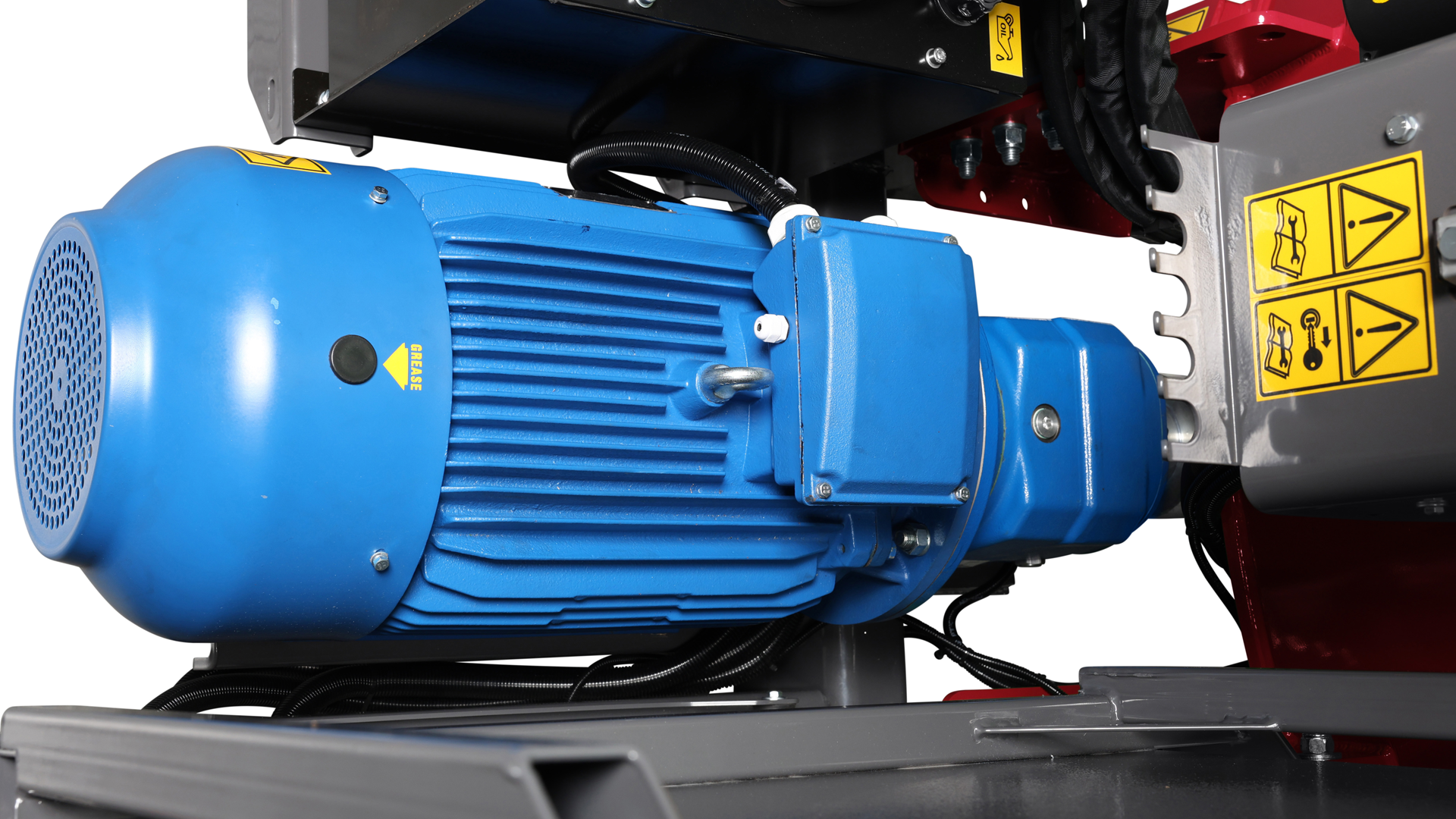

Geared motor
12mm-thick augers with low power absorption
Saber auger blades
Rotation of the auger from zero to max 34 revolutions adjuster with inverter
Total emergency stop

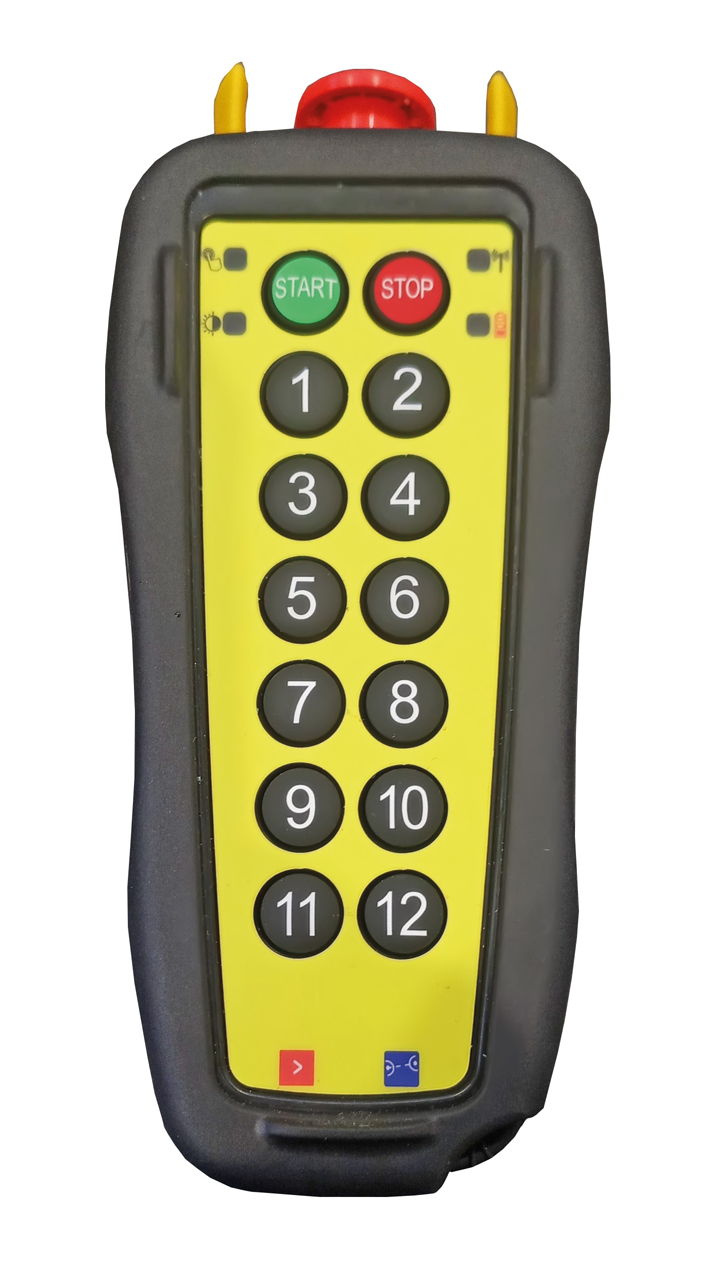

RADIO CONTROL FUNCTIONS
Start – enable remote control
Stop – disable remote control
1 – Start mixer
2 – Stop mixer
3 – Start oil pump
4 – Stop oil pump
5 – Close unloading port
6 – Open unloading port
7 – Up conveyor belt
8 – Down conveyor belt
9 – Start conveyor belt
10 – Stop conveyor
11 – Opt.
12 – Opt.
Practical radio control that allows the user to remotely activate the main functions of the SL SMART HYBRID stationary mixer.
Technical specifications
Technical specifications
| Specifications | SL – 30 |
|---|---|
| Max Load Kg | 900 |
| Capacity m³ | 3 |
| Elettric motor HP/Kw | 15 |
| A | 3460 |
| B | 2170 |
| C | 985 |
| D | 300 |
| E | 740 |
| F | 390 |
| G | 2515 |
| H | 2030 |
| I | 1550 |
| L | 1700 |
| L1 | 2030 |
| Q | / |
| Weight Sensors | 3 |
| Weight Kg | 1910 |
| Specifications | SL – 40 |
|---|---|
| Max Load Kg | 1200 |
| Capacity m³ | 4 |
| Elettric motor HP/Kw | 15 |
| A | 3460 |
| B | 2170 |
| C | 985 |
| D | 300 |
| E | 740 |
| F | 390 |
| G | 2515 |
| H | 2200 |
| I | 1550 |
| L | 1700 |
| L1 | 2030 |
| Q | 245 |
| Weight Sensors | 3 |
| Weight Kg | 1980 |
| Specifications | SL – 50 |
|---|---|
| Max Load Kg | 1500 |
| Capacity m³ | 5 |
| Elettric motor HP/Kw | 22 |
| A | 3460 |
| B | 2170 |
| C | 985 |
| D | 300 |
| E | 740 |
| F | 390 |
| G | 2800 |
| H | 2420 |
| I | 1550 |
| L | 1700 |
| L1 | 2030 |
| Q | / |
| Weight Sensors | 3 |
| Weight Kg | 2220 |
| Specifications | SL – 60 |
|---|---|
| Max Load Kg | 1800 |
| Capacity m³ | 6 |
| Elettric motor HP/Kw | 22 |
| A | 3460 |
| B | 2170 |
| C | 985 |
| D | 300 |
| E | 740 |
| F | 390 |
| G | 2800 |
| H | 2650 |
| I | 1550 |
| L | 1700 |
| L1 | 2030 |
| Q | 245 |
| Weight Sensors | 3 |
| Weight Kg | 2300 |
Standard Equipment
• 1 Auger thickness 12 mm
• Tank bottom thickness 12 mm
• Tank wall thickness 5 mm
• Weighting system
• 3 Weight sensors
• Side discharge door rh
• 2 manual counter-knives H = 370 mm
• Simple inspection ladder
• Frame structured in the box with 3 support
• Columns and weight sensors on the floor
