| Specifications | SL 170 | SL 200 | SL 220 | SL 240 | SL 270 | SL 300 |
|---|---|---|---|---|---|---|
| Weight | 7.600 kg | 7.800 kg | 8.300 kg | 8.500 kg | 9.000 kg | 9.300 kg |
| Capacity | 17 m³ | 20 m³ | 22 m³ | 24 m³ | 27 m³ | 30 m³ |
| Max load | 6.000 kg | 7.000 kg | 7.700 kg | 8.400 kg | 10.800 kg | 12.000 kg |
| No. Knives | 16 | 16 | 20 | 20 | 24 | 24 |
| KW | 75 | 75 | 90 | 90 | 110 | 110 |
| A Length | 7.050 mm | 7.050 mm | 7.250 mm | 7.250 mm | 7.400 mm | 7.400 mm |
| A1 Length | 8.500 mm | 8.500 mm | 8.700 mm | 8.700 mm | 8.900 mm | 8.900 mm |
| B Width | 2.650 mm | 2.650 mm | 2.950 mm | 2.950 mm | 2.950 mm | 2.950 mm |
| C Height | 2.580 mm | 2.670 mm | 2.780 mm | 2.930 mm | 3.140 mm | 3.320 mm |
MIXER SL
SL 170 / SL 200 / SL 220 / SL 240 / SL 270 / SL 300
The stationary models from 3 to 60m³, single-auger, double-auger and three-auger, are mixer-mowers designed both to be used as a feed dispenser for all types of livestock farms, but can also be used to feed biogas systems. They can be equipped with an internal wear-resistant coating to extend the life of the mixer and can have one or more discharge ports depending on the requirements of the company. They have a weighing system as standard, and various models of electric motors can be supplied as optional accessories based on the needs of the material to be processed.
4 weight sensors Ø70
Counter-knives H=900mm and elettronic top-cut OPT 170-240 STD 270-300
Platform with scale
Adjustable support
Bonet for electric engine

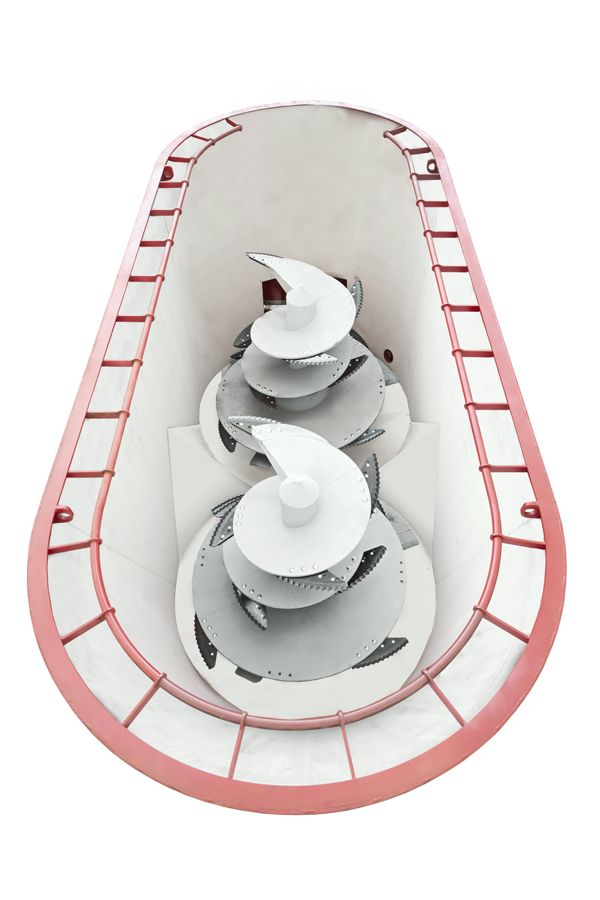

20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm
Technical specifications
Technical specifications
| Specifications | SL 170 |
|---|---|
| Weight | 7.600 kg |
| Capacity | 17 m³ |
| Max load | 6.000 kg |
| No. Knives | 16 |
| KW | 75 |
| A Length | 7.050 mm |
| A1 Length | 8.500 mm |
| B Width | 2.650 mm |
| C Height | 2.580 mm |
| Specifications | SL 200 |
|---|---|
| Weight | 7.800 kg |
| Capacity | 20 m³ |
| Max load | 7.000 kg |
| No. Knives | 16 |
| KW | 75 |
| A Length | 7.050 mm |
| A1 Length | 8.500 mm |
| B Width | 2.650 mm |
| C Height | 2.670 mm |
| Specifications | SL 220 |
|---|---|
| Weight | 8.300 kg |
| Capacity | 22 m³ |
| Max load | 7.700 kg |
| No. Knives | 20 |
| KW | 90 |
| A Length | 7.250 mm |
| A1 Length | 8.700 mm |
| B Width | 2.950 mm |
| C Height | 2.780 mm |
| Specifications | SL 240 |
|---|---|
| Weight | 8.500 kg |
| Capacity | 24 m³ |
| Max load | 8.400 kg |
| No. Knives | 20 |
| KW | 90 |
| A Length | 7.250 mm |
| A1 Length | 8.700 mm |
| B Width | 2.950 mm |
| C Height | 2.930 mm |
| Specifications | SL 270 |
|---|---|
| Weight | 9.000 kg |
| Capacity | 27 m³ |
| Max load | 10.800 kg |
| No. Knives | 24 |
| KW | 110 |
| A Length | 7.400 mm |
| A1 Length | 8.900 mm |
| B Width | 2.950 mm |
| C Height | 3.140 mm |
| Specifications | SL 300 |
|---|---|
| Weight | 9.300 kg |
| Capacity | 30 m³ |
| Max load | 12.000 kg |
| No. Knives | 24 |
| KW | 110 |
| A Length | 7.400 mm |
| A1 Length | 8.900 mm |
| B Width | 2.950 mm |
| C Height | 3.320 mm |
Standard Equipment
– 2 Auger thickness 15 mm
– Tank bottom thickness 20 mm
– Tank wall thickness 8 mm
– 2 manual counter-knives h=450 mm (17-24m³ )
– 2 hydraulic counter-knives h=900 mm (27-30m³ )
– Chassis with 4 support columns on the ground and with 4 weights sensors Ø70 mm
– Perin weighing system 800
– Rh side discharge door
– Hydraulic system quick joints
– 2 speed gear box 1000 rpm
– Cardan shaft
– Simple inspection ladder
– Inspection bonnet designed for platform and ladder
