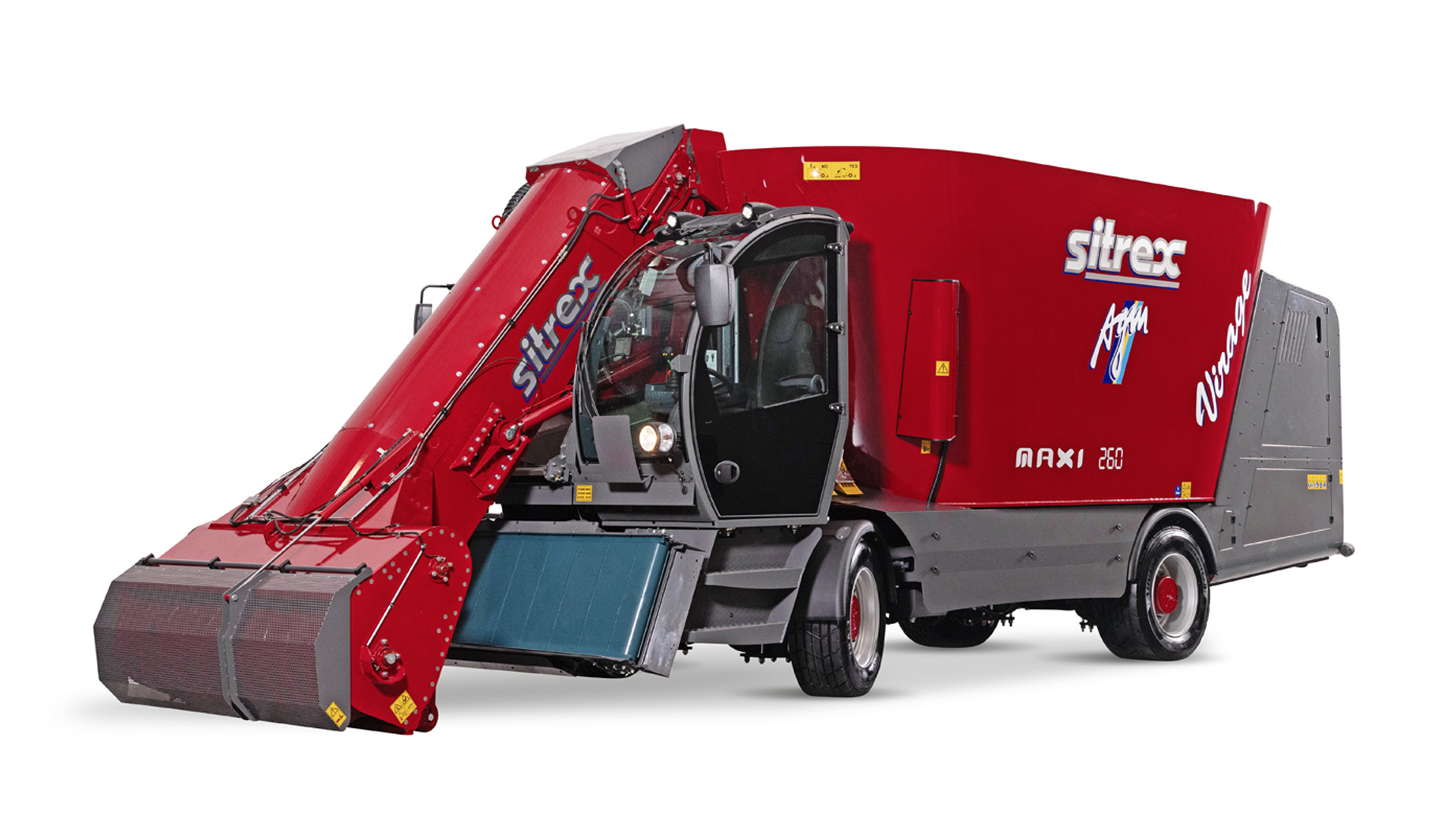

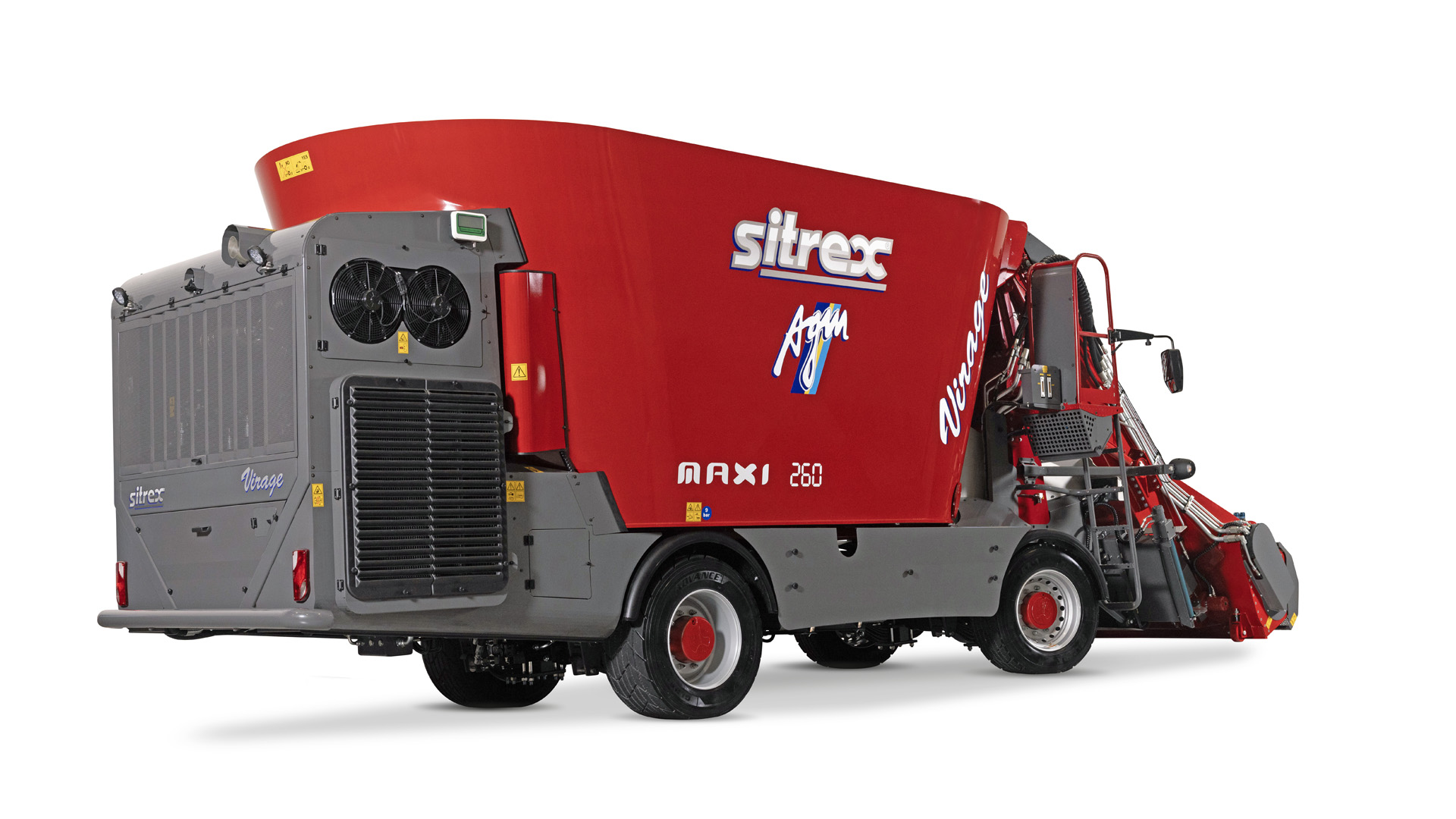

MIXER VIRAGE MAXI

Milling cutter rotor L.2000mm
High performance 125Hp milling cutter engine
Conveyor auger to increase loading speed
Central stainless steel discharge
Foldable bilateral rubber discharge
Carraro steering axle with leaf spring suspension
Carraro steering axle with leaf spring suspension and traction – 4drive traction is optional
Large engine comparment inspection doors
Containment ring welded internally to the mixing tank
Hydraulically openable panel
TOP-CUT hydraulic counter-knives L.900mm
Cab with large glass surface and pneumatic suspension driver’s seat
Electrically ventilated radiator for hydraulic oil
Water radiator/intercooler with reversible fan system for cleaning
Rear tyres 445/50 R.22,5
Front tyres 385/55 R.22,5
Thickness of the bottom of the tank 20 mm
200l fuel tank
Hydraulic hopper for the loading of supplements
Mixing tank inspection ladder
Comer auger reducers
Danfoss hydraulic auger motor
John Deere stage V 168kW – 225Hp engine
Rear camera
180-litre hydraulic oil tank
Thickness of the tank sheet metal 8 mm
2 Augers 20 mm
Heated rear-view mirrors
Driver’s seat with air suspension
“fast” reverse pedal
large glass surface to increase visibility during manoeuvres
Large display with integrated fault diagnostics
12-button multifunctional joystick to control all operations simply and safely
Multifunctional armrest incorporated into the driver’s seat
20mm-thick augers with low power absorption
sabre knives adjustable into two positions
Rotation speed from 5 to 42rpm

Technical specifications

SpecificationsMAXI 200MAXI 220MAXI 240MAXI 270MAXI 300
Weight17.750 Kg17.890 Kg17.900 Kg18.100 Kg18.200 Kg
Capacity20 m³22 m³24 m³27 m³30 m³
Max load8.500 Kg9.200 Kg10.000 Kg10.500 Kg11.000 Kg
Height (A)3.010 mm3.200 mm3.350 mm3.620 mm3.620 mm
Width (B)2.655 mm2.655 mm2.650 mm2.650 mm2.800 mm
Length (C)9.400 mm9.400 mm9.445 mm9.575 mm9.575 mm
Work height cutter (D)4300 mm4315 mm5300 mm5730 mm5750 mm
Front tyres385/55 R22.5385/55 R22.5385/55 R22.5385/55 R22.5385/55 R22.5
Rear tyres445/50 R22.5445/50 R22.5445/50 R22.5445/50 R22.5445/50 R22.5
Augers22222
Auger thickness20 mm20 mm20 mm20 mm20 mm
Nr.of knives per auger8+810+1010+1012+1212+12
Tank bottom thickness20 mm20 mm20 mm20 mm20 mm
Tank wall thickness8 mm8 mm8 mm8 mm8 mm
Rear axleDifferential “CARRARO” self-locking - hydrostatic traction “DANFOSS”Differential “CARRARO” self-locking - hydrostatic traction “DANFOSS”Differential “CARRARO” self-locking - hydrostatic traction “DANFOSS”Differential “CARRARO” self-locking - hydrostatic traction “DANFOSS”Differential “CARRARO” self-locking - hydrostatic traction “DANFOSS”
Weighing systemPERIN 1.500PERIN 1.500PERIN 1.500PERIN 1.500PERIN 1.500
Nr. of load cells44444

Technical specifications

SpecificationsMAXI 200
Weight17.750 Kg
Capacity20 m³
Max load8.500 Kg
Height (A)3.010 mm
Width (B)2.655 mm
Length (C)9.400 mm
Work height cutter (D)4300 mm
Front tyres385/55 R22.5
Rear tyres445/50 R22.5
Augers2
Auger thickness20 mm
Nr.of knives per auger8+8
Tank bottom thickness20 mm
Tank wall thickness8 mm
Rear axleDifferential “CARRARO” self-locking - hydrostatic traction “DANFOSS”
Weighing systemPERIN 1.500
Nr. of load cells4
SpecificationsMAXI 220
Weight17.890 Kg
Capacity22 m³
Max load9.200 Kg
Height (A)3.200 mm
Width (B)2.655 mm
Length (C)9.400 mm
Work height cutter (D)4315 mm
Front tyres385/55 R22.5
Rear tyres445/50 R22.5
Augers2
Auger thickness20 mm
Nr.of knives per auger10+10
Tank bottom thickness20 mm
Tank wall thickness8 mm
Rear axleDifferential “CARRARO” self-locking - hydrostatic traction “DANFOSS”
Weighing systemPERIN 1.500
Nr. of load cells4
SpecificationsMAXI 240
Weight17.900 Kg
Capacity24 m³
Max load10.000 Kg
Height (A)3.350 mm
Width (B)2.650 mm
Length (C)9.445 mm
Work height cutter (D)5300 mm
Front tyres385/55 R22.5
Rear tyres445/50 R22.5
Augers2
Auger thickness20 mm
Nr.of knives per auger10+10
Tank bottom thickness20 mm
Tank wall thickness8 mm
Rear axleDifferential “CARRARO” self-locking - hydrostatic traction “DANFOSS”
Weighing systemPERIN 1.500
Nr. of load cells4
SpecificationsMAXI 270
Weight18.100 Kg
Capacity27 m³
Max load10.500 Kg
Height (A)3.620 mm
Width (B)2.650 mm
Length (C)9.575 mm
Work height cutter (D)5730 mm
Front tyres385/55 R22.5
Rear tyres445/50 R22.5
Augers2
Auger thickness20 mm
Nr.of knives per auger12+12
Tank bottom thickness20 mm
Tank wall thickness8 mm
Rear axleDifferential “CARRARO” self-locking - hydrostatic traction “DANFOSS”
Weighing systemPERIN 1.500
Nr. of load cells4
SpecificationsMAXI 300
Weight18.200 Kg
Capacity30 m³
Max load11.000 Kg
Height (A)3.620 mm
Width (B)2.800 mm
Length (C)9.575 mm
Work height cutter (D)5750 mm
Front tyres385/55 R22.5
Rear tyres445/50 R22.5
Augers2
Auger thickness20 mm
Nr.of knives per auger12+12
Tank bottom thickness20 mm
Tank wall thickness8 mm
Rear axleDifferential “CARRARO” self-locking - hydrostatic traction “DANFOSS”
Weighing systemPERIN 1.500
Nr. of load cells4
